DYNAMOMETER 900 KW
PTO DYNAMOMETER PT 401
The EGGERS dynamometer PT 401 covers the complete spectrum of all performance classes for both tractors and harvesters.
Whether in the practical box trailer as the PT 401 K for mobile use, or stationary as the workshop version PT 401 W – you will get a lot of performance with this dyno. With a power of 900 kW (1224 HP) for the quick test and 510 kW (694 HP) for a full load curve, you can handle any engine.
Equipped with a torque measuring shaft in the drive train, the highest levels of accu - racy are achieved. With this dynamometer you are also prepared for the future in terms of precision and performance. With ever performance increasing agricultural machinery and the growing demands on performance test benches, an EGGERS dynamometer PT 401 is certainly the first choice for future-oriented companies.
DYNAMOMETER 900 KW
| Technical Data | PT 401 |
| Modell Versions | PT 401 K: Road version, on chassis PT 401 W: Workshop version |
| Brakesystem | 3 retarders (eddy current brakes, wear-free |
| Collant | Electric high-performance fans (approx. 17000 m³/h) |
| Measuring range at 1000 min-1 and 20°C The measuring time depends on the size of the tractor and location. |
Quick test: 900 kW (1224 HP) Full load curve: 510 kW (694 HP) |
| max. revolutions permissible max. torque |
2500 1/min (optionally 3600 1/min), 9000 Nm |
| Precision | 0,5% of the measured value |

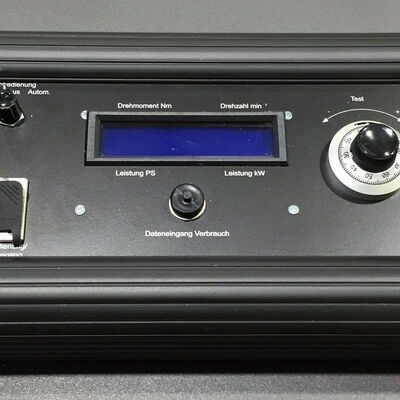

| Display | digital display, speed, torque, Power in kW and HP |
| DMS Sensor | Measuring hub, standard temperature compensated |
| Direction of rotation | in both directions as standard |
| Electrical Power Supply | 400V/230 V, 16 A |
| Frame/ Housing | Frame made of galvanized steel; walls made of Multiplex, aluminum |
| Chassis (PT 401 K) | tandem chassis with automatic reversing system, 2-wing rear door, welded frame hot-dip galvanized, foldable automatic support wheel, 2 handles, fender supports, lockable stainless-steel closure, storage space for PTO shaft and PTO shaft halves |
| Measure and weights | PT 401 K: L: 3900 mm; B: 1750 mm; H: 2000 mm; Weight: 2100 kg, permissible total weight: 2700 kg, PT 401 W: L: 2400 mm; B: 1300 mm; H: 1600 mm; Weight 1800 kg |
| Standard delivery items | operating instructions, connection plug |
| Against additional charge | PTO shaft 1 ¾“ 6T – 1 3/8“ 6T, PTO half shaft 1 3/8“ 21T, PTO half shaft 1 ¾“ 20T, PTO half shaft 1 ¾“ 6T; Tarpaulin (only for workshop version), Software: “PowerControl” Bluetooth or cable connection to the PC; Accessories for direct engine measurement, Fuel consumption measurement |
GALLERY
PT 401 K / W
