DYNAMOMETER 300 KW
PTO SHAFT POWER BRAKE PT 170 E / SE
The compactness of the EGGERS PT 170 dynamometer is impressive and allows it to be accommodated in even in the most confined of workplaces. This dynamometer can be supplied as both a mobile workshop version as well as on an 80 km/h chassis. Boasting a performance range of up to 300 kW for a rapid test and 170 kW for a full-load curve, the PT 170 dynamometer already covers the majority of tractors on the market.
Naturally, the PT 170 E/SE can also be adapted to customer requests and we are happy to include this in the delivery.
DYNAMOMETER 300 KW
| Technical Data | PT 170 E / SE |

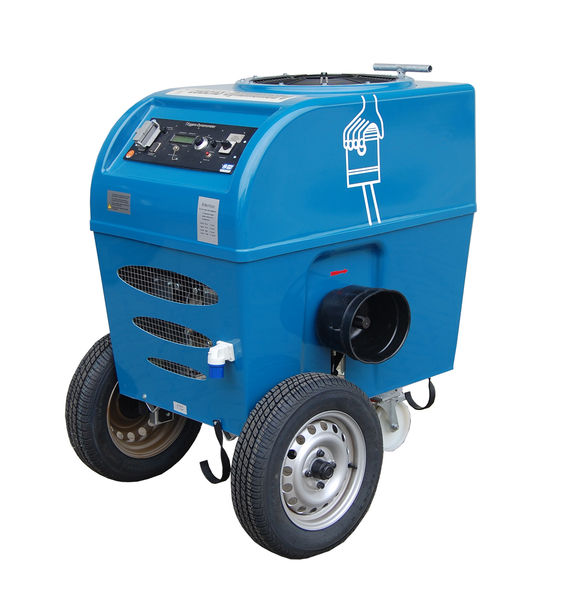

| Modell Versions | PT 170 E: workshop type, mobile PT 170 SE: road type, on trailer 80 km/h |
| Brakesystem | 1 Retarder (Eddy current brake, maintenance free) |
| Collant | Aircooled by highpower electric fan (ca. 8.500 m³/h) |
| Measurement range at 1000 min-1 and 20°C *Measurement time depending upon tractor size and local conditions |
300 kW 1 min* 275 kW 2 min* 250 kW 2,5 min* 225 kW 3,5 min* 200 kW 4,5 min* 160 kW 7,5 min* 140 kW 9 min* 110 kW 40 min* |
| max. revolutions permissible max. torque |
1300 1/min optional up to 3600 1/min 3600 Nm |
| Precision | <1 % |
| Display | Digital display, indication revolutions, torque, power (kW, PS) |
| DMS Sensor | Standard |
| Direction of rotation | Both |
| Electrical Power Supply | 240 V, 16 A slow |
| Frame | Zinc plated / GRP |
| Measure and weights | PT 170 E: L 900 mm; B 1000 mm; H 1500 mm; Gew. 525 kg PT 170 SE: L 2350 mm; B 1600 mm; H 1350 mm; Gew. 550 kg |
| Standard delivery items | Instruction manual, CEE plug 3X16A |
| Against additional charge | Spezial cardan shaft 1 ¾“ 6Z – 1 3/8“, Cardan half shaft 1 3/8“ 21T, Cardan half shaft 1 ¾“ 20T, Cardan half shaft 1 ¾“ 6T, Software: „Eggers PowerControl“ Bluetooth or cable remote control |
